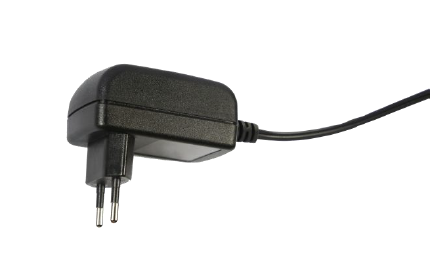

該系列電源具有全球輸入電壓范圍、低功耗、高效率、高可靠性、安全隔離等優點,可滿足各種消費電子設備、電信設備、辦公及民用設備的需求。
| 系列標題 | 功率 (W) | 輸入電壓 (VDC) |
輸出電壓 (VDC) |
輸出路數 | 隔離電壓 (VDC) |
封裝形式 | 封裝尺寸 (mm) |
|
| MI036-HA | 25~36 | 90~264VAC | 3,5,9,12,15,24 | 1 | - | 插墻式 澳規 | 88.50*49.00*38.00 | |
| MG036-HA | 25~36 | 90~264VAC | 3,5,9,12,15,24 | 1 | - | 插墻式 英規 | 88.50*43.00*31.00 | |
| ME036-HA | 25~36 | 90~264VAC | 3,5,9,12,15,24 | 1 | - | 插墻式 歐規 | 88.50*43.50*31.50 | |
| MC036-HA | 25~36 | 90~264VAC | 3,5,9,12,15,24 | 1 | - | 插墻式 中規 | 88.50*43.50*31.50 | |
| MA036-HA | 25~36 | 90~264VAC | 3,5,9,12,15,24 | 1 | - | 插墻式 美規 | 74.70*42.00*31.00 | |
| MI024-HA | 20~24 | 90~264VAC | 5,9,12,15,24 | 1 | - | 插墻式 澳規 | 74.70*42.00*31.00 | |
| MG024-HA | 20~24 | 90~264VAC | 5,9,12,15,24 | 1 | - | 插墻式 英規 | 74.70*42.00*31.00 | |
| ME024-HA | 20~24 | 90~264VAC | 5,9,12,15,24 | 1 | - | 插墻式 歐規 | 74.70*42.00*31.00 | |
| MC024-HA | 20~24 | 90~264VAC | 5,9,12,15,24 | 1 | - | 插墻式 中規 | 88.50*43.00*40.00 | |
| MA024-HA | 20~24 | 90~264VAC | 5,9,12,15,24 | 1 | - | 插墻式 美規 | 88.50*49.00*38.00 | |
| MI018-HA | 9~18 | 90~264VAC | 3,5,9,12,15,24 | 1 | - | 插墻式 澳規 | 62.00*44.50*26.00 | |
| ME018-HA | 9~18 | 90~264VAC | 3,5,9,12,15,24 | 1 | - | 插墻式 歐規 | 88.50*43.00*31.00 | |
| MC018-HA | 9~18 | 90~264VAC | 3,5,9,12,15,24 | 1 | - | 插墻式 中規 | 88.50*43.00*31.00 | |
| MA018-HA | 9~18 | 90~264VAC | 3,5,9,12,15,24 | 1 | - | 插墻式 美規 | 88.50*43.00*31.00 | |
| MI012-UA | 12.5 | 90~264VAC | USB 5V | 1 | - | 插墻式 澳規 | 66.00*39.00*29.00 | |
| MI012-HA | 7.5~15.6 | 90~264VAC | 3,5,9,12,15,24 | 1 | - | 插墻式 澳規 | 62.00*49.50*26.00 | |
| MG012-UA | 12.5 | 90~264VAC | USB 5V | 1 | - | 插墻式 英規 | 66.00*39.00*29.00 | |
| MG012-HA | 7.5~15.6 | 90~264VAC | 3,5,9,12,15,24 | 1 | - | 插墻式 英規 | 62.00*39.00*26.00 | |
| ME012-UA | 12.5 | 90~264VAC | USB 5V | 1 | - | 插墻式 歐規 | 66.00*39.00*29.00 | |
| ME012-HA | 7.5~15.6 | 90~264VAC | 3,5,9,12,15,24 | 1 | - | 插墻式 歐規 | 62.00*39.00*26.00 | |
| MC012-UA | 12.5 | 90~264VAC | USB 5V | 1 | - | 插墻式 中規 | 66.00*39.00*29.00 | |
| MC012-HA | 7.5~15.6 | 90~264VAC | 3,5,9,12,15,24 | 1 | - | 插墻式 中規 | 62.00*39.00*26.00 | |
| MA012-HA | 7.5~15.6 | 90~264VAC | 3,5,9,12,15,24 | 1 | - | 插墻式 美規 | 66.00*39.00*29.00 | |
| MI005-WA | 5 | 90~264VAC | USB 5V | 1 | - | 插墻式 澳規 | 55.40*40.16*44.50 | |
| MG005-WA | 5 | 90~264VAC | USB 5V | 1 | - | 插墻式 英規 | 55.00*49.40*42.29 | |
| ME005-WA | 5 | 90~264VAC | USB 5V | 1 | - | 插墻式 歐規 | 55.38*25.20*54.30 | |
| MC005-WA | 5 | 90~264VAC | USB 5V | 1 | - | 插墻式 中規 | 55.38*25.20*35.50 | |
| MA005-WA | 5 | 90~264VAC | USB 5V | 1 | - | 插墻式 美規 | 55.38*25.20*35.50 | |
| MI005-VA | 3~6 | 90~264VAC | 3,5,9,12,15 | 1 | - | 插墻式 澳規 | 55.40*40.16*44.57 | |
| MG005-VA | 3~6 | 90~264VAC | 3,5,9,12,15 | 1 | - | 插墻式 英規 | 55.00*49.40*42.29 | |
| ME005-VA | 3~6 | 90~264VAC | 3,5,9,12,15 | 1 | - | 插墻式 歐規 | 55.38*25.20*35.51 | |
| MC005-VA | 3~6 | 90~264VAC | 3,5,9,12,15 | 1 | - | 插墻式 中規 | 55.00*24.00*35.00 | |
| MA005-VA | 3~6 | 90~264VAC | 3,5,9,12,15 | 1 | - | 插墻式 美規 | 55.00*24.00*35.00 | |
| ME005-HA | 3~6 | 90~264VAC | 3,5,9,12,15 | 1 | - | 插墻式 歐規 | 57.00*37.00*25.00 | |
| MC005-HA | 3~6 | 90~264VAC | 3,5,9,12,15 | 1 | - | 插墻式 中規 | 57.00*37.00*25.00 | |
| MA005-HA | 3~6 | 90~264VAC | 3,5,9,12,15 | 1 | - | 插墻式 美規 | 55.00*37.00*25.00 |
