| 系列標(biāo)題 | 功率 (W) | 輸入電壓 (VDC) |
輸出電壓 (VDC) |
輸出路數(shù) | 隔離電壓 (VDC) |
封裝形式 | 封裝尺寸 (mm) |
|
| K12T-16A | 16A | 8.3~14 | 0.75~5 | 1 | 0 | SMD | 33.00*13.50*8.30 | |
| K12T-10A | 10A | 8.3~14 | 0.75~5 | 1 | 0 | SMD | 33.00*13.50*8.30 | |
| K12T-6A | 6A | 8.3~14 | 0.75~5 | 1 | 0 | SMD | 20.30*11.40*6.60 | |
| KUB48_QB-10A | 10A | 16~75 | 12,24 | 1 | 0 | 開(kāi)板式DIP | 59.20*37.60*13.00 | |
| K78xxT-500R3 | 500mA | 4.75~36 | 3.3,±5,9,±12,±15 | 1 | 0 | SMD | 15.24*8.50*8.25 | |
| K78xx-2000R3(L) | 2000mA | 6~36 | 3.3,±5,9,±12,±15 | 1 | 0 | SIP | 11.50*9.00*17.50 | |
| K78_MT-1000R4 | 1000mA | 4.5~36 | 3.3,±5,9,±12,±15 | 1 | 0 | DFN | 9.00*7.00*3.10 | |
| K78_MT-500R4 | 500mA | 4.5~36 | 3.3,±5,9,±12,±15 | 1 | 0 | DFN | 9.00*7.00*3.10 | |
| K78xxM-1000R3 | 1000mA | 8~36 | 3.3,±5,9,±12,±15 | 1 | 0 | SIP | 11.60*8.00*10.40 | |

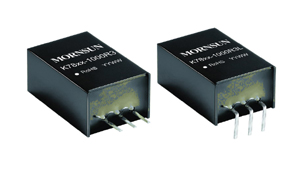

| K78xx-1000R3(L) | 1000mA | 6~36 | 3.3,±5,9,±12,±15 | 1 | 0 | SIP | 11.50*9.00*17.50 | |
| K78Lxx-500R3 | 500mA | 4.75~36 | 3.3,±5,9,±12,±15 | 1 | 0 | SIP | 10.00*7.20*11.00 | |
| K78xx-500R3 | 500mA | 4.75~36 | 3.3,±5,9,±12,±15 | 1 | 0 | SIP | 11.60*7.55*10.16 |
